AD FS – Old Habits (idpinitiatedsignon.aspx)

AD FS 2.0, AD FS 2016, AD FS 3.0, AD FS R2, AD FS VNext, ADFS, Windows Server 2012 R2, Windows Server 2016, , , , , , ,

Usually after building an AD FS/WAP farm I test locally from the Internet and the Intranet using (to-date) a fairly reliable source of verification that the service is up and running. I’m referring to, of course, the IdP sign-in page (../adfs/ls/idpinitiatedsignon.aspx). This offers a simple way of validating login via AD FS.

With Windows Server 2016, this page is no longer surfaced “out-of-the-box”.. if you want to do a SAML 2.0  IdP-initiated sign-on, this functionality will need to be enabled. Otherwise, connecting to the obligatory sign-in page, will produce an error similar to the following:

2016-06-10_18-06-00

Testing from the Web Application Proxy itself directly,  pointing to the AD FS farm, we may see an HTTP 503 Service Not Available error.

Via Powershell, it can be switched back on:

set-adfsproperties -EnableIdpInitiatedSignon $True

Now, before we get too hasty,  knowing that we can turn it back on versus actually turning it back on are two different things 🙂 If it’s directly required, IdP-driven sign-on is a feature of your federation setup, then you may have no choice. For example, certain SaaS/Cloud applications simply don’t support SP-initiated workflow.

For some organizations I’ve worked for though, this page is seen as insidious because it reveals the relying parties configured on your AD FS farm anonymously.

AD FS 2.0

2016-06-16_18-57-06

AD FS 2012 R2

2016-06-16_18-58-34

Going back to AD FS 2.0, customers are often unwilling to float this data anonymously via the sign-in page and want to hide the RP enabled trusts visible on the page, sometimes re-writing the code behind to do so or even hiding it from the browser via obfuscation.

Whatever your view, it’s off by default in Windows Server 2016. Those of a paranoid bent may now breathe …………. in….. out….in… out…. there you go 🙂





Back to the Home Realm Discovery in 2012 R2

2FA, AD FS R2, Customization, Home Realm Discovery, MFA, Multi-Factor Authentication, PointSharp, Strong Authentication, Windows Server 2012 R2

Hello all.  You may recall from older posts on this blog (2012) that we’ve played around in the past with Home Realm Discovery (HRD) in AD FS.

First with IWA and forms logon here and then a little bit more for good measure. Since then it’s been a little quiet on the HRD fence and not a subject delved into much since. That is, until an issue a colleague and I  ran into an issue recently… confronted with the following AD FS R2 access conundrum:

“ How can we route (automatically) external  logon requests to a third-party claims provider,  continue to route internal logon requests to the native AD claims provider (i.e. maintain transparent SSO), eliminating any Home Realm Discovery (HRD) for our users to have to walk through and select?”

Or… to put it more simply. How can one automatically route external route requests to claims provider A, continue to route internal requests to (AD) claims provider B, whilst altogether avoiding Home Realm Discovery (HRD) for all users?

We’ll discuss the exact use case in a moment. This is a RP-initiated work-flow. No IDP-initiated flow or smart links are allowed.

First, a bit of background. Let’s head back to the first look posts on AD FS 2012 R2 in 2013/2014. In there I wrote:

“In AD FS R2, HRD customization options through PowerShell now allow us to determine how the UI is presented to the end-user during logon, based on:

1. target suffix resolution – providing suffix routing on a per claims provider basis
2. limiting the claims providers visible for the relying party concerned”

With the move to kernel-mode in R2, customization previously possible under IIS in AD FS 2.0 was no longer applicable. To redress this issue and to provide greater flexibility, the above customization options were provided. Suffix routing enables AD FS 2012 R2 to select an appropriate claims provider based on the domain suffix credentials provided by that user. Broadly speaking, this is just how O365/Azure AD works in attempting to discover the Federated home realm v Microsoft realm of the connecting user. Similarly, for on-premise AD FS, suffix routing enables us to refine our logon decision-making based on the home realm of the connecting user. Here’s an example:

  • Users from the Cranky Nuts organization, connecting via AD FS, use a @crankynuts.nl domain suffix. Accordingly, we need to send authentication requests to the Cranky Nuts Identity Provider.
  • Users from the Wobbly Wheels organization, connecting via AD FS, use a @wobblywheels.be domain suffix. Accordingly,  we need to send authentication requests to the Wobbly Wheels Identity Provider.

In AD FS 2012 R2 we can configure this within Powershell:

Set-AdfsClaimsProviderTrust –TargetName “Cranky Nuts IdP” –OrganizationalAccountSuffix @(“crankynuts.nl”)
Set-AdfsClaimsProviderTrust –TargetName “Wobbly Wheels IdP” –OrganizationalAccountSuffix @(“wobblywheels.be”)

Wonderful! Using this approach can be a little hit and miss though. It’s making certain assumptions about the level at which we’re prepared to divert authentication on, i.e. the domain level. That’s not always the case.

We could, alternatively, opt for the other method: targeting claims provider selection at the Relying Party Trust level. Again, this is  useful functionality. Here’s an example.

Set-AdfsRelyingPartyTrust -TargetName “BodgeIT Inventory ” -ClaimsProviderName @(“crankynuts.nl”)

This makes the “BodgeIT Inventory” Relying Party/Web Application, available to users of the Cranky Nuts organization, bypassing the local AD claims provider.  Should we need to extend access to additional claims providers, such as our local Active Directory, then we can add that issuer to the mix. The downside of this option, is that we’re forced into making a home-realm discovery selection during logon.

The Suffix and RP-specific claims provider options, therefore, do have some limitations.  Indeed, for the scenario that we were faced with, neither option fit.  In  our situation,  two claims providers existed for a single organization,  with each CP containing the same set of users. The use case?  Two-factor authentication.  The upstream claims provider (CP) provides two-factor authentication (2FA) for users connecting from the outside , while the incumbent local AD claims provider covers local Windows logon.

Of course, two claims providers means Home Realm Discovery (HRD) and HRD can be confusing.  We can remedy this for internal users, ensuring they don’t get the HRD prompt by defaulting to the use of the local AD claims provider via Powershell:

Set-ADFSProperties –IntranetUseLocalClaimsProvider $True

This doesn’t solve the problem for access from the outside. Moreover, we expressly wish to send all connecting users to our 2FA claims provider, rather than to the in-build AD claims provider…. We could use auxiliary authentication provided by the MFA Adapter in AD FS 2012 R2, thereby eliminating the use of the upstream claims provider. However, that might not be feasible as:

  1. Leading with the AD password as the primary authentication credential  may not be allowed.
  2. The vendor has an MFA adapter for AD FS 2012 R2.

Even where the latter is available, the (security) policy prerogative might be that use of  1) is not allowed, thereby overriding (2).

<PLUG>To demonstrate issue, cue favorite authentication platform PointSharp (</PLUG>

PointSharp possess both a Security Token Service (STS) that can stip atop AD FS as a 2FA claims provider role and also have an MFA adapter for AD FS 2012 R2 / 2016. Since use of the MFA adapter has been prohibited by the customer according to the rules above (not wanting to lead with AD password as a primary authentication credential), the STS as a Claims Provider was selected instead.

You’ll recall we turned off HRD for internal users by setting the IntranetUseLocalClaimsProvider setting to TRUE. With the PointSharp STS configured as a claims provider, external users will get continue to get the HRD screen as AD FS cannot determine where the user lives without the appropriate “hint”.  In AD FS 2.0 it was possible to workaround this by customizing the AD FS 2.0 proxy configuration, modifying the Page_Init section of the homerealmdiscovery.aspx.cs file.  We could then remove Active Directory as a claims provider (0)

PassiveIdentityProvidersDropDownList.Items.RemoveAt(0);

Once that was done, default realm selection would fall to our other claims provider (STS)

SelectHomeRealm ( PassiveIdentityProvidersDropDownList.SelectedItem.Value );

As you are no doubt aware, IIS has been supplanted in AD FS 2012 R2 with everything running in kernel-mode. Thankfully, all is not lost though. Some of the functionality previously possible under IIS has moved to Javascript and customization of the onload.js script is covered in a couple of scenarios here..

Variables previously living in .NET code-behind are visible in the View Source of the web page of the HRD screens. Options for both claims providers are visible.

….HRD.selection(‘http://adfs.mydomain.com/adfs/services/trust&#8217;);” onclick=”HRD.selection(‘http://adfs.mydomain.com/adfs/services/trust’); …….
….HRD.selection(‘https://sts.mydomain.com/login/&#8217;);” onclick=”HRD.selection(‘https://sts.mydomain.com/login/’); …….

HRD.selection is the main feature of interest. There’s an action on clicking the realm manually that specifies the HRD we require. We can automate this by moving the selection to the onload.js script, thereby automating selection of the PointSharp Claims Provider. First, we need to customize our AD FS setup.

We create a new theme called PointSharp based on the default AD FS theme

New-AdfsWebTheme –Name PointSharp –SourceName default

Export the default theme to allow our customization

Export-AdfsWebTheme –Name default –DirectoryPath c:\scripts

Copy the default onload.js to the C:\Scripts folder and edit it. At the end of the script, we simply add the reference to the PointSharp claims provider using the following syntax (replace with your own CP) :

HRD.selection(‘https://sts.mydomain.com/login/’);

We then import the new PointSharp theme including the modified onload.js.

Set-AdfsWebTheme -TargetName PointSharp -AdditionalFileResource @{Uri=’/adfs/portal/script/onload.js’;path=”c:\scripts\onload.js”}

Activate the new theme.

Set-AdfsWebConfig -ActiveThemeName PointSharp

External users will be now routed to the PointSharp claims provider for login, whilst AD logon for internal users is still preserved. Please note that this is a GLOBAL change affecting all users of the AD FS farm and test extensively as it might not be your cup of tea…

Customizing AD FS Relying Parties in Windows Server 2012R2

AD FS 3.0, AD FS R2, Customization, Relying Party, Windows Server 2012 R2

You may recall a previous post from a few weeks back, concerning customization of AD FS Relying Parties in Windows Server 2016.  This functionality is now out-of-the-box in the latest version of AD FS. What was less well-documented was examples of how this could be accomplished in Windows Server 2012 R2. Pierre Audonet from Microsoft has thankfully solved that problem by posting this great article on Technet, that describes how to customize the onload.js script for registering custom URIs and illustrations to bind to your relying parties. Thanks Pierre!

Interoperability scenarios with simpleSAMLphp and AD FS

AD FS 2.0, AD FS 2.1, AD FS 3.0, AD FS R2, Identity Provider, SAML 2.0, Service Provider, SimpleSAMLphp, , , , , , , , , , ,



Hello all and Happy New Year!

In this post we’ll look at inter-operability scenarios involving simpleSAMLphp and Active Directory Federation Services (AD FS).

simpleSAMLphp is a native PHP application that provides support for a number of authentication protocols/methods. Its origins lie with the SAML protocol, but it also provides support for a range of other authentication protocols (e.g. WS-Federation, OAuth, LDAP, RADIUS).  It’s a very capable and robust platform that can run on a number of different web surfaces.

In this post we’ll be covering identity federation scenarios with simpleSAMLphp and our usual incumbent: AD FS, getting the two to play nicely together.  We’ll look at both sides of the coin via a:

(a)    simpleSAMLphp Service Provider (SP) / AD FS Identity Provider (IdP) pairing.

(b)   simpleSAMLphp Identity Provider (IdP) / AD FS Service Provider (SP) pairing;



In both cases, setup is applicable to both AD FS 2.0 and AD FS 3.0/2012 R2.

For an introduction to simpleSAMLphp, start here.  It runs on a wide variety of web servers (Apache, Nginx, IIS among others).  In these scenarios we’ll use IIS as our web server for deployment.

clip_image002

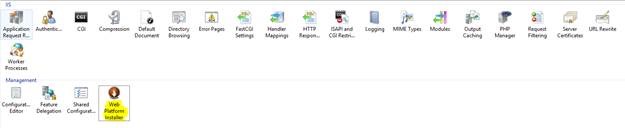

The latest PHP libraries can be obtained through the IIS Web Platform Installer. In this setup PHP 5.5.x is used and simpleSAMLphp 1.13.x.

The latest binaries for simpleSAMLphp are available via their website (http://www.simplesamlphp.org).

For SAML integration with AD FS, SSL certificate(s) are required to secure the IIS website(s) and the underlying simpleSAMLphp application(s). This pre-requisite stems from AD FS supporting HTTPS only.  In the test configuration described here, the simpleSAMLphp instances are also published behind an AD FS Web Application Proxy (WAP). The pass-through (reverse) proxy functions of the WAP are then used to publish the simpleSAMLphp IdP/SP endpoints.  On the IIS side, Server Name Indication (SNI) is also enabled.

The test setup used here comprises four virtual machines:

(i)                  An Active Directory Domain Services (AD DS) and Certificate Services (AD CS) node;

(ii)                An Active Directory Federation Services (AD FS) 2012 R2 Farm node;

(iii)               A Web Application Proxy (WAP) 2012 R2 node;

(iv)              An IIS 8.5 Web server with php loaded as an application. This hosts the simpleSAMLphp Identity Provider (IdP), Service Provider and test applications, under dedicated websites/paths.

clip_image004

The AD DS and AD CS instances provide authentication and the SSL certificates for the IIS web services. On the Web Application Proxy (WAP) a third-party certificate is installed. This goes somewhat against the grain with Microsoft recommendations of using the same certificate pairing on the WAP and AD FS. However, since we’re not using device management/Workplace Join in this scenario, which I believe the requirements stem from, there are no immediate issues.

On our “application server” IIS is installed. Herein, I’ve created four websites (idp1, idp2, site1 and site2), representing two simpleSAMLphp SAML 2.0 identity providers and two simpleSAMLphp service providers. The website configuration can be seen in the below graphic:

clip_image005

In each case the simpleSAMLphp files are unzipped to a folder per function, e.g:

·         c:\inetpub\idp1 and c:\inetpub\idp2 for the SAML identity provider (IdP) root paths

·         c:\inetpub\web1 and c:\inetpub\web2 for the SAML server provider (SP) root paths

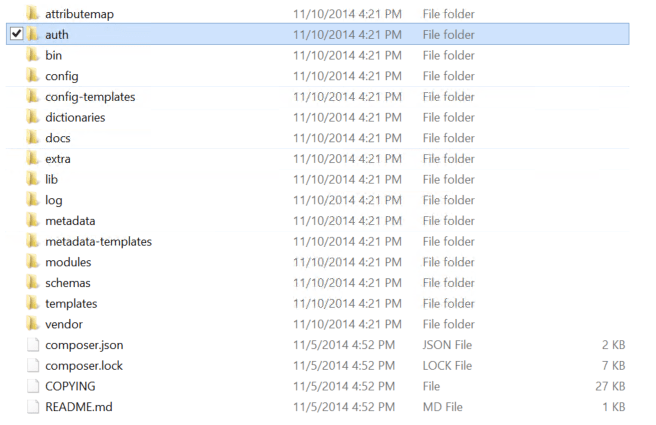

In IIS Manager, we can see the folder structure of an exploded simpleSAMLphp configuration for a single instance.

clip_image006

In each instance, under the config folder, a baseurlpath setting in the config.php file is set to indicate the root path for simpleSAMLphp content. By default, this is set to www.  Should we wish to change this, such that the desired path to our simpleSAMLphp is say https://idp1.mydomain.com/auth  rather than the default https://idp1.mydomain.com/www, then we make the change to the baseurlpath from ‘www/’ to ‘auth/‘ and rename the www folder accordingly. Note the use of the trailing slash that should always be present in the  baseurlpath value.

From a simpleSAMLphp standpoint, there’s a few tweaking steps required before we get going in our test setup.

By default, a secretsalt setting is configured in the config.php file and it’s strongly recommended to change this. This should be a random string, as the salt is used to generate cryptographically secure hashes.

Also, we should consider getting logging working properly. This will reap dividends later when it comes to troubleshooting. As with other settings so far mentioned, logging settings are defined in config.php.

Firstly, debug is enabled via setting:

‘debug’ => TRUE,

By default, the logging level is set to SYSLOG.  Here we’ll also switch the logging level to DEBUG and then alter the handler to file. This is done by setting the following values:

     ‘logging.level’         => SimpleSAML_Logger::DEBUG,

       ‘logging.handler’       => ‘file’,



In later sections of the CONFIG.PHP file, the output filename is also specified. This writes to the log folder of the instance.

‘logging.logfile’          => ‘simpleSAMLphp.log’,

This log file lives under the /log folder of the simpleSAMLphp instance. However, simply specifying the file to use is not sufficient for logging under IIS to work.   For that little feat, the IUSR needs to been given modify access to the simpleSAMLphp logfile.

clip_image008

Repeat this process for each instance of simpleSAMLphp running under IIS on your server(s), giving the IUSR account the appropriate permissions.

Once logging has been configured, we can see the benefits of verbose logging as it provides a rich level of detail. Here’s a sample:

<AttributeStatement>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       <Attribute xmlns:a=”http://schemas.xmlsoap.org/ws/2009/09/identity/claims&#8221; Name=”http://schemas.microsoft.com/2012/01/requestcontext/claims/x-ms-client-ip&#8221; a:OriginalIssuer=”CLIENT CONTEXT”>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]         <AttributeValue>172.16.x.6</AttributeValue>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       </Attribute>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       <Attribute xmlns:a=”http://schemas.xmlsoap.org/ws/2009/09/identity/claims&#8221; Name=”http://schemas.microsoft.com/2012/01/requestcontext/claims/x-ms-forwarded-client-ip&#8221; a:OriginalIssuer=”CLIENT CONTEXT”>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]         <AttributeValue>212.x.y.5</AttributeValue>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       </Attribute>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       <Attribute xmlns:a=”http://schemas.xmlsoap.org/ws/2009/09/identity/claims&#8221; Name=”http://schemas.microsoft.com/ws/2012/01/insidecorporatenetwork&#8221; a:OriginalIssuer=”CLIENT CONTEXT”>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]         <AttributeValue xmlns:tn=”http://www.w3.org/2001/XMLSchema&#8221; xmlns:b=”http://www.w3.org/2001/XMLSchema-instance&#8221; b:type=”tn:boolean”>false</AttributeValue>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       </Attribute>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       <Attribute xmlns:a=”http://schemas.xmlsoap.org/ws/2009/09/identity/claims&#8221; Name=”http://schemas.microsoft.com/2012/01/requestcontext/claims/x-ms-endpoint-absolute-path&#8221; a:OriginalIssuer=”CLIENT CONTEXT”>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]         <AttributeValue>/adfs/ls/</AttributeValue>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       </Attribute>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       <Attribute xmlns:a=”http://schemas.xmlsoap.org/ws/2009/09/identity/claims&#8221; Name=”http://schemas.microsoft.com/2012/01/requestcontext/claims/x-ms-client-user-agent&#8221; a:OriginalIssuer=”CLIENT CONTEXT”>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]         <AttributeValue>Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 6.3; WOW64; Trident/7.0; Touch; .NET4.0E; .NET4.0C; .NET CLR 3.5.30729; .NET CLR 2.0.50727; .NET CLR 3.0.30729; Tablet PC 2.0; InfoPath.3; MASEJS)</AttributeValue>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       </Attribute>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       <Attribute xmlns:a=”http://schemas.xmlsoap.org/ws/2009/09/identity/claims&#8221; Name=”uid” NameFormat=”urn:oasis:names:tc:SAML:2.0:attrname-format:basic” a:OriginalIssuer=”https://idp1.mylos.net/www/saml2/idp/metadata.php”&gt;

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]         <AttributeValue>student</AttributeValue>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]       </Attribute>

Sep 19 17:30:19 simpleSAMLphp DEBUG [5805446797]     </AttributeStatement>



Back in IIS, I’ve elected to employ the services of our friend Server Name Indication (SNI). This is defined on the website. Unlike with AD FS, SNI is an option under IIS J

clip_image010



SNI allows us to run multiple web sites under IIS, using different certificates/domain combinations per website, all bound to a shared single IP address. This makes it possible in this test setup to run with numerous instances of simpleSAMLphp, in identity and service provider roles, all on the same server; without having to deal with the hassle of SSL Host Headers, listener changes, tweaking friendly names on certificates etc.

Web server setup itself is pretty straightforward. For simpleSAMLphp instances, either identity or service provider, we prep the web server with the following steps:

    1. create an A record for the URL in AD DNS, e.g. idp1.mydomain.com
    2. create an A record for the URL in Internet/External  DNS and point this to the IP address/VIP of the Web Application Proxy.
    3. create a website in IIS for simpleSAMLphp and point the configuration to the baseurlpath, of your choice, e.g. c:\inetpub\wwwroot\idp1\www

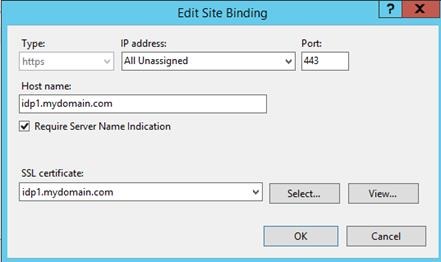

    4. add an SSL binding on the website, with Require Server Name Indication (SNI) enabled and a host header matching the URL, e.g. idp1.mydomain.com
    5. publish the new website on the reverse proxy (Web Application Proxy) using a pass-through rule
    6. configure the simpleSAMLphp configuration as described later in the post
    7. repeat for each additional new instance

Web Application Proxy (Optional)

In this lab, we’re using the AD FS Web Application Proxy (WAP) to reverse proxy HTTPS traffic to the various simpleSAMLphp endpoints. The following pass-through proxy rules are created.

Name

External URL

Backend Server URL

Pre-authentication

idp1

https://idp1.mydomain.com

https://idp1.mydomain.com

Pass-through

idp2

https://idp2.mydomain.com

https://idp2.mydomain.com

Pass-through

web1

https://web1.mydomain.com

https://web1.mydomain.com

Pass-through

web2

https://web2.mydomain.com

https://web2.mydomain.com

Pass-through



No name/URL translation is performed. Servers idp1 and idp2 are SAML 2.0 identity providers, whilst web1 and web2 are SAML 2.0 service providers.

For integration testing with AD FS, we’ll run through the following scenarios:

1.       configuring AD FS as an Identity Provider and simpleSAMLphp as a service provider

2.       configuring simpleSAMLphp as an Identity Provider and AD FS as a service provider



Scenario 1 – AD FS Identity Provider (IdP) and simpleSAMLphp Service Provider (SP)

Let’s start with simpleSAMLphp in the SAML 2.0 Service provider (SP) role.

For a basic configuration, there are a number of key simpleSAMLphp files we work with. These are:

–          config.php

–          authsources.php

–          saml20-idp-remote.php

In the authentication sources document (authsources.php), various service provider properties are defined. A single authsources.php containing information of all setups can be used and shared across multiple environments, in our case (web1 and web2), or we may elect to store settings separately, using a unique authsources.php per environment .

For expediency, I highlight the use of a common authsources.php. Each authentication module/configuration is represented by its own section in the document.

Here’s an example of two SAML service provider configurations in a test authsources.php:



‘onion1-sp’ => array(

              ‘saml:SP’,



              ‘entityID’ => NULL,

‘idp’ => NULL,

              ‘discoURL’ => NULL,



              ‘redirect.sign’ => TRUE,

              ‘assertion.encryption’ => TRUE,

              ‘sign.logout’ => TRUE,

              ‘privatekey’ => ‘web1.key’,

              ‘certificate’ => ‘web1.pem’,







       ‘attributes’ => array(

      ‘uid’,

       ‘mail’

      ),

       ‘signature.algorithm’ => ‘http://www.w3.org/2001/04/xmldsig-more#rsa-sha256&#8217;,

       ),



);



‘onion2-sp’ => array(

              ‘saml:SP’,



‘entityID’ => NULL,

              ‘idp’ => NULL,

              ‘discoURL’ => NULL,



              ‘redirect.sign’ => TRUE,

              ‘assertion.encryption’ => TRUE,

              ‘sign.logout’ => TRUE,

              ‘privatekey’ => ‘web2.key’,

              ‘certificate’ => ‘web2.pem’,





       ‘attributes’ => array(

      ‘uid’,

       ‘mail’

      ),

       ‘signature.algorithm’ => ‘http://www.w3.org/2001/04/xmldsig-more#rsa-sha256&#8217;,

       ),



);



Notice the different section names (onion1-sp and onion2-sp) and use of separate certificate keypairs (web1 and web2) in each section.  With the entity ID/identifier set to ‘entityID’ => NULL, simpleSAMLphp will handle the naming for the (RP) identifier of that service provider * and an entity ID is generated based on the metadata URL. In the above config, using web1.mydomain.com and web2.mydomain.com as URLs, this would translate to:



https://web1.mydomain.com/www/module.php/saml/sp/metadata.php/onion1-sp

https://web2.mydomain.com/www/module.php/saml/sp/metadata.php/onion2-sp



*  It’s also perfectly acceptable for you to choose your own identifier in the entityID section, rather than defaulting to NULL.



The IdP section refers to the entity ID (identifier in AD FS terminology) of the IdP that the service provider (SP) should contact. Like the entity ID value of  NULL used for the simpleSAMLphp service provider, this can also be set to NULL for the idp value. Where multiple identity providers exist, then the user will be shown a list of available IdPs to select from.



clip_image012

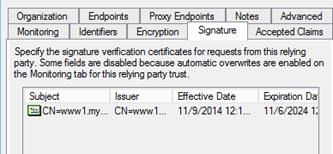

To corroborate the identity of the service provider, we can (optionally) digitally sign requests and a certificate is required to accomplish this.  Reference to this cert for a service provider (SP) is made in simpleSAMLphp by the privatekey and certificate setting values in the authsources.php.



By default, simpleSAMLphp uses the same certificate for token signing and encryption. The certificates comprising the private key (.key) and public key (.pem) will reside in a cert folder  made off the SimpleSAMLphp base configuration path.



‘privatekey’ => ‘web1.key’,

              ‘certificate’ => ‘web1.pem’,



In this particular configuration, we’ve elected to enable the SP to sign authentication requests (redirect/post), using the the `redirect.sign` =>TRUE option.

While use of signing and encryption is generally considered an unsightly configuration overhead and an optional, use of token signing comes into play with SAML requirements for Single Logout (SLO) and where service providers request specific functionality. As an identity provider, AD FS does expect SAM 2.0 service providers (simpleSAMLphp) to sign logout requests. With this in mind, we elect to use certificates and logout requests are signed by the SP, specifying ‘sign.logout’ => TRUE.



To satisfy the above requirements, when creating the token signing/encryption certificate(s) for simpleSAMLphp, OpenSSL is used here to generate a certificate using the SHA2 signing algorithm. Here’s an example (2 year validity).

openssl req -x509 -nodes -sha256 -days 730 -newkey rsa:2048 -keyout my.key -out my.pem



If we’re not satisfied with simply signing tokens, then we can also require the content of the token to be encrypted, by requesting encryption using ‘assertion.encryption’ => TRUE.



Our SP is expecting that the AD FS identity provider will provide the attributes uid and mail attributes in the SAML response, as expressed by:



‘attributes’ => array(

      ‘uid’,

       ‘mail’





A SHA2 (SHA256) algorithm is used to sign messages generated by the service provider.



‘signature.algorithm’ => ‘http://www.w3.org/2001/04/xmldsig-more#rsa-sha256&#8217;



If you’re not up to date on this and as the help text in the configuration files explain, SHA-1 as a signing algorithm is largely being supplanted by use of stronger schemes.



At this point we have the makings of a basic setup authentication-wise. Additionally, simpleSAMLphp needs to be made aware of the AD FS identity provider configuration. This is collected from federation metadata belonging to the AD FS IdP and then stored in the saml20-idp-remote.php file, located in the metadata folder. This file contains configuration details for all remote SAML 2.0 Identity Providers (IdP) known to that service provider.

As we’ll see, the process for pruning metadata and converting it into a simpleSAMLphp friendly format is useable for both service providers and identity providers, thereby applicable for Scenario 2.

Getting the AD FS metadata into a simpleSAMLphp-friendly format is aided by using tools found under the installation page simpleSAMLphp (matching the baseurlpath path). Browsing to the service provider URL, e.g. https://web1.mydomain.com/www shows the simpleSAMLphp installation page.

clip_image014

It’s a good idea to password protect this page. This can be done by editing settings in the config.php file. The settings described therein protect the main admin page and the ensuing metadata pages.

‘auth.adminpassword’          => ‘adminpasswordtobeset’,

‘admin.protectindexpage’      => true,

‘admin.protectmetadata’       => false,



In the above, the installation page is protected and metadata left unprotected to allow automated exchange.

The installation pages allow us to perform a number of tests to prepare and configure the installation.

    1. Review the simpleSAMLphp configuration, installed/enabled modules, PHP versions etc.
    2. Use the built-in tools to parse federation metadata from identity or service providers, e.g. AD FS, subject to role, using the XML to simpleSAMLphp metadata converter.
    3. Validate the configuration by testing configured authentication sources (applies to both identity and service provider roles) via the authentication tab
    4. Observe federation metadata endpoints configured and exposed simpleSAMLphp (valid for both identity and service provider configurations)

The Federation tab on the installation page provides useful information relating to metadata and tools for assisting in the setup of federation trusts. At the foot of the federation screen, note the XML to simpleSAMLphp metadata converter.

clip_image016

Use this to convert federation metadata from remote sources into a simpleSAMLphp friendly format.

clip_image018

Here the metadata from the AD FS SAML 2.0 Identity Provider (IdP) needs to be converted for consumption by the simpleSAMLphp service provider. Download the metadata from AD FS and save it to a text file. Metadata is reachable at:

https://<YOUR FEDERATION SERVICE URL/FederationMetadata/2007-06/FederationMetadata.xml

Open the file in Notepad, copy the contents to the Metadata parser in the browser and then click on the Parse button. This will convert metadata into two formats:

(a)    saml20-sp-remote.php used where AD FS is a remote SAML 2.0 Service Provider

(b)   saml20-idp-remote.php used where AD FS is a remote SAML 2.0 Identity Provider

Since AD FS is the identity provider in this scenario, then we require Option (b). In the converted metadata section of the page, find the section relating to saml20-idp-remote.php and copy the text to clipboard. Open the saml20-idp-remote.php file found in the metadata folder of the IdP configuration, paste the contents, appending the parsed metadata into this file and save it.

NB: I’ve read on the simpleSAMLphp forums that it’s also possible to save files to the metadata folder and reference these in your configuration directly. I’ve not tested this, but if interested it’s worth checking out the simpleSAMLphp github on how this can be done.

Back at the installation page, the federation tab is also worth checking out. It shows the SAML 2.0 SP metadata endpoint information needed to configure the simpleSAMLphp relying party on the AD FS side. Here’s an example of a shared configuration file (authsources.php) representing multiple service providers.

clip_image020

If the simpleSAMLphp URL is reachable by the AD FS IdP, then automatic exchange of metadata is possible. Where the metadata page is password protected, then file exchange of metadata can be performed.

Let’s jump to AD FS now. We’ll add the SP instance, utilizing the “default-sp” label as our SAML 2.0  relying party of interest.

clip_image022

Here our endpoint is reachable across the “Internet” so we can automatically configure the RP by consuming the metadata of the service provider concerned. We create our relying party and simply take the URL mentioned above, parse it into the wizard and AD FS consumes the remote XML document automatically. Should this not be possible, say where the metadata document is password protected, or policies at the SP state otherwise, we can import the file using the AD FS wizard as mentioned earlier.

In the Issuance Transform rules on the Relying Party (RP), we can mine the claims from AD (as our claims provider), to populate the simpleSAMLphp requirements. In this example we:

–          use the Send LDAP attributes as claims rule to send E-Mail Address and sAMaccountName as uid and mail, required by this relying party

–          use a transform rule to send a Name Identifier in the transient format

clip_image024

As can be seen from the above graphic, we’re using E-Mail Address and sAMAccountName to use as incoming claims to populate in our  outgoingSAML assertion as mail and uid respectively.

Incidentally, when initiating federated logon with the SAML 2.0 protocol, a name identifier is typically used.   AD FS as an identity provider, does not send name identifier information in the format expected by simpleSAMLphp. By default, simpleSAMLphp expects a nameid format using the transient identifier (urn:oasis:names:tc:SAML:2.0:nameid-format:transient).

A quick way to get this going, albeit not conforming to SAML specs, is to transform an incoming claim rule, extracted from our AD provider, to populate as an outgoing name identifier.

clip_image026

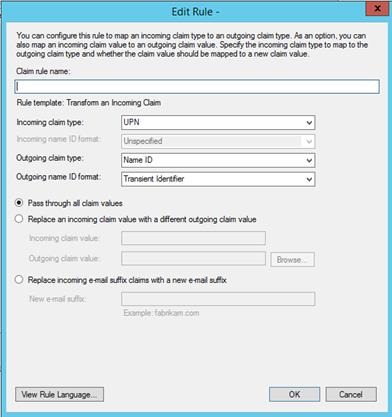

In the above UI example an incoming UPN claim is transformed into a transient identifier.

Using the claims rule language, the two rules can be expressed as issuance transform rules on the simpleSAMLphp relying party as:

c:[Type == “http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname&#8221;, Issuer == “AD AUTHORITY”]

 => issue(store = “Active Directory”, types = (“mail”, “uid”), query = “;mail,sAMAccountName;{0}”, param = c.Value);



c:[Type == “http://schemas.xmlsoap.org/ws/2005/05/identity/claims/upn”%5D

 => issue(Type = “http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier&#8221;, Issuer = c.Issuer, OriginalIssuer = c.OriginalIssuer, Value = c.Value, ValueType = c.ValueType, Properties[“http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/format”%5D = “urn:oasis:names:tc:SAML:2.0:nameid-format:transient”);



Verifying the RP configuration, we should see both token signing and encryption certificates represented in the appropriate tabs on the relying party, populated among other settings as part of the metadata exchange.

clip_image028

Above, the public key of the token signing certificate, on the Signature tab of the RP.

clip_image030

And on the encryption tab, the public key of the encryption certificate from simpleSAMLphp.

clip_image032

On the Advanced tab, the secure hash algorithm should be set to SHA-256



We’re now good to go for testing the configuration within simpleSAMLphp.

Here I select the Test configured authentication sources on the authentication tab.



clip_image034

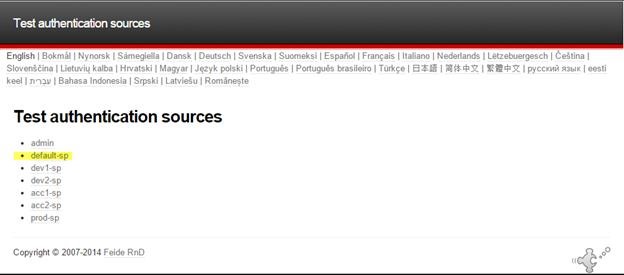

Then choose to test the default-sp configuration.

clip_image036

If the idp value for the service provider in authsources.php is set to NULL, then a drop-down list of identity providers will  be presented (otherwise we’re routed automatically to AD FS)

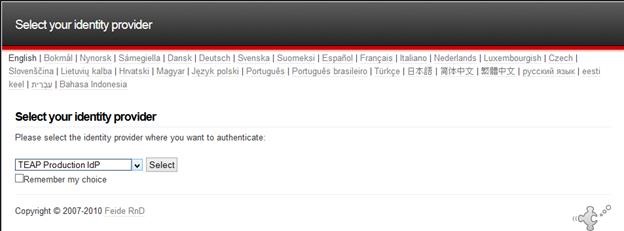

Here’s an example of a drop-down dialog with the Access Onion identity provider selection.

clip_image038

This particular identity provider is running AD FS 3.0/2012 R2. Connecting from the Internet, we’re routed to the Access Onion AD FS instance (behind the Web Application Proxy) and presented with a logon form.

clip_image040

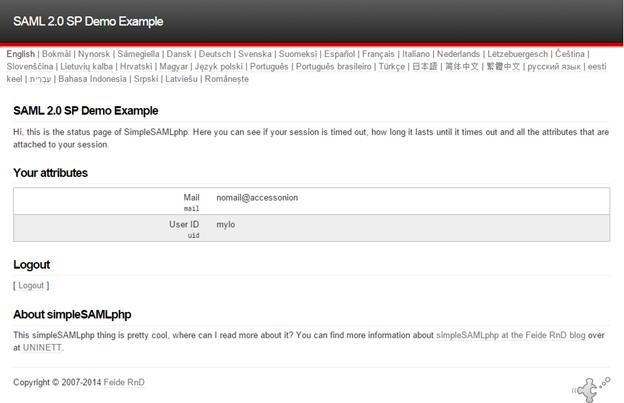

As part of the logon process the appropriate user credentials are posted to AD FS, in this case user mylo.  Sent back in the SAML response is also the e-mail address of the user, read from the mail attribute in Active Directory, with a value of  nomail@accessonion  for this user.  The resultant SAML assertion can be seen in simpleSAMLphp.

clip_image042



Note that the name identifier is not visible on the installation page, although its presence is mandatory.

Click on Logout to check that Single Logout is also functioning and that the two federation partners are configured correctly, signing algorithms are in synch etc.

clip_image044

And we’re logged out, token extinguished/gone.

This is a barebones configuration. Should you wish to employ more expansive configurations, incorporating simpleSAMLphp into the PHP code of your web application (Drupal/Moodle/Joomla etc.), then refer to the simpleSAMLphp website, where there are examples to illustrate this.

Quick note on Name Identifiers

With respect to the earlier comment on the SAML protocol and NameID, when passing a name identifiers of a transient sort, it’s preferable to use an opaque identifier commuted between relying parties that doesn’t reveal the identity of the individual concerned.  To get a better insight into this with respect to AD FS and SAML, I’d suggest reading this MSDN article, as it provides examples on how privacy-bearing claims can be used.

If we wish to use an opaque reference, borrowing from the aforementioned article:

Rule 1: generate a session ID value that can be used as a transient identifier. Add this rule to the claims pipeline.

c1:[Type == “http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname”] && c2: [Type == “http://schemas.microsoft.com/ws/2008/06/identity/claims/authenticationinstant”]=> add (store = “_OpaqueIdStore”, types = (“http://sts.mydomain.com/internal/sessionid”), query = “{0};{1};{2};{3};{4}”, param = “useEntropy”, param = c1.Value, param = c1.OriginalIssuer, param = “”, param = c2.Value);

Rule 2:  Using the previously generated session ID, map this to the outgoing claim type  as Name ID using the transient identifier and issue the claim.

c:[Type == ”http://sts.mydomain.com/internal/sessionid”] => issue(Type=”http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier”, Issuer = c.Issuer, OriginalUser = c.OriginalIssuer, Value = c.Value, ValueType = c.ValueType, Properties[“http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/format”]=”urn:oasis:names:tc:SAML2.0:nameid-format:transient”);

Now let’s look at a sample scenario where AD FS is the SAML 2.0 Servicer Provider (SP) and simpleSAMLphp is the SAML 2.0 Identity Provider (IdP)

Scenario 2 – simpleSAMLphp Identity Provider (IdP) and AD FS Service Provider (SP)

In the identity provider (IdP) capacity, simpleSAMLphp supports a number of authentication methods. These include:

·         Local authentication

·         Single LDAP/AD

·         Multi-LDAP

·         RADIUS

·         SQL

·         OpenID (FB/Twitter etc.)

·         Yubikey



That’s quite a diverse set of authentication mechanisms. There are also a number of additional custom modules developed within the community that support even more refined use cases.

We’ll look at a basic setup utilizing local authentication; namely, username/passwords stored in a flat file in the authsources.php file of the simpleSAMLphp IdP. As unglamorous as this might sound, it’s a good starting point for getting a working configuration up and running before mixing it with other more complex setups involving LDAP/RADIUS/SQL etc.

There are a number of files we work with in the identity provider configuration. These are:

–          config.php

–          authsources.php

–          saml20-idp-hosted.php

–          saml20-sp-remote.php

On the SAML SP side, AD FS will be using simpleSAMLphp as a claims (identity) provider. We’ll also reuse the simpleSAMLphp SAML 2.0 service provider from Scenario 1 as a relying party (behind AD FS) to illustrate attribute flow.

clip_image046

Here’s the basic logon flow:

1.       User browses to the simpleSAMLphp Relying Party.

2.       User selects the AD FS authentication source and is redirected to AD FS.

3.      Rules logic on the AD FS determines that the user should be directly sent to the simpleSAMLphp claims provider, without showing a realm discovery page.

4.       User is redirected to simpleSAMLphp identity provider for logon where they log on as student

5.       User logs on with local identity (from authsources.php)

6.       User is redirected to AD FS for processing

7.       Claims provider rules are evaluated on the AD FS pipeline

8.       Relying Party rules are evaluated on the AD FS pipeline

9.       User is redirected to the simpleSAMLphp relying party

With all working swimmingly, we’ll end up on the simpleSAMLphp relying party page.

clip_image048

In this logon scenario, we’re using AD FS as Relying Party Security Token Service (RP-STS) in a “headless” capacity. It (AD FS) is not responsible for authentication but must still handle routing of the authentication request to the simpleSAMLphp relying party / test web application.

In a multiple claims provider scenario, when sending requests via AD FS, we would normally be presented with the Home Realm Discovery (HRD) screen.

clip_image050

As can be seen from the above graphic, with AD FS (via AD) enabled as a claims provider, the “Access Onion” claims provider AND the simpleSAMLphp identity provider are both visible as authentication sources. For this scenario we want to exclusively send logon requests to the simpleSAMLphp identity provider, so the (home) realm selection needs to be suppressed for the simpleSAMLphp relying party/test web application. As mentioned in previous “First Look” posts on AD FS 2012 R2, this can be achieved by declaring the claims provider of choice for the relying party to use for logon in PowerShell.

Set-AdfsRelyingPartyTrust -TargetName “My Relying Party” -ClaimsProviderName @(“SimpleSAMLphp”)

This effectively takes the Access Onion Active Directory out of the mix for logon.

Back to simpleSAMLphp, we begin by enabling the SAML 2.0 identity provider functionality in config\config.php for our identity provider (idp1.mydomain.com) instance.

‘enable.saml20-idp’ => true,

Assigning true to this option enables the SAML 2.0 Identity Provider capability in this instance.

The saml20-idp-hosted.php file in the metadata folder is key for configuring the identity provider. Here’s an example (in bold) calling a local (simpleSAMLphp) authentication method known as example-userpass.

<?php

$metadata[‘__DYNAMIC:1__’] = array(

    ‘host’ => ‘__DEFAULT__’,

    ‘privatekey’ => ‘idp1.key’,

    ‘certificate’ => ‘idp1.pem’,

    ‘auth’ => ‘example-userpass’,

    ‘signature.algorithm’ => ‘http://www.w3.org/2001/04/xmldsig-more#rsa-sha256&#8217;,

    ‘authproc’ => array(1 => array(‘class’ => ‘saml:TransientNameID’,),),

);

You may recognize common aspects of the configuration from the SP scenario applied previously in the authsources.php. Similarly these can be applied to our identity provider configuration in the saml20-idp-hosted.php file.

The identity provider calls the example-userpass authentication scheme from the saml20-idp-hosted.php file.

The authentication element, expressed as ‘auth’ => ‘example-userpass’, cross-references the appropriate section of the authsources.php file, containing therein a list of users.

‘example-userpass’ => array(

      ‘exampleauth:UserPass’,

      // Give the user an option to save their username for future login attempts

      // And when enabled, what should the default be, to save the username or not

      //’remember.username.enabled’ => FALSE,

      //’remember.username.checked’ => FALSE,



      ‘student:pa$$st@dent’ => array(

             ‘uid’ => array(‘student’),

             ‘mail’ => array(‘student@nomail.com’),

             ‘eduPersonAffiliation’ => array(‘member’, ‘student’),

      ),

      ’employee:3mployEEP&ss’ => array(

             ‘uid’ => array(’employee’),

             ‘mail’ => array(’employee@nomail.com’),

             ‘eduPersonAffiliation’ => array(‘member’, ’employee’),

      ),

      ),



There are two test users: student and employee, with attributes uid and mail populated. As with Scenario 1, to build a federation trust with AD FS, information must be gathered via exchange of metadata to make the trust possible. For the simpleSAMLphp identity providers, extrapolated metadata from the remote AD FS service provider is stored in the saml20-sp-remote.php file in the metadata folder. On the AD FS side, we need to create a relying party trust for our test web application. We’ll re-use the service provider/relying party created in Scenario 1.

To populate the identity provider with the relevant information, the AD FS metadata file needs to be imported to the simpleSAMLphp identity provider (IdP) instance.

Open the installation page of the identity provider, e.g. https://idp1.mydomain.com/www, authenticating where necessary, and select the federation tab.

Download the AD FS federation metadata from the metadata endpoint and save it to text file.

https://<YOUR FEDERATION SERVICE URL/FederationMetadata/2007-06/FederationMetadata.xml

Open the AD FS metadata file in Notepad, copy the content to the clipboard and then launch the XML to simpleSAMLphp metadata converter on the federation tab.

clip_image051

Paste the contents to the Metadata parser form in the browser and then click on the Parse button.

clip_image053

Scroll down to the saml20-sp-remote.php section of the web page

clip_image055

Copy this section of text to clipboard.

clip_image057

In the identity provider configuration, open the saml20-sp-remote.php file found in the metadata folder and append the parsed metadata held in clipboard to this file. Save the file.

As a SAML service provider, during passive SSO logons, AD FS makes use of a default name identifier of emailaddress. This can be seen from the metadata screenshot (circled in green):

‘NameIDFormat’ => ‘urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress’,



Given that our identity provider prefers the transient format, this can be altered using Powershell by specifying the required NameID format. More on this in a moment….

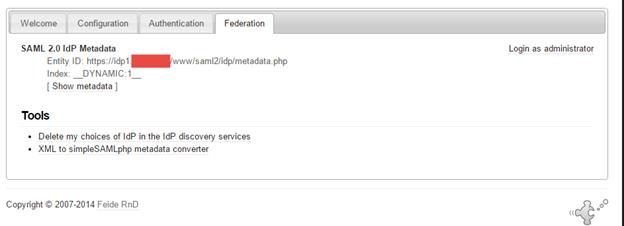

From the identity provider (https://idp1.mydomain.com/www) installation page of simpleSAMLphp, the metadata endpoint information is visible on the federation tab. This corresponds to the Entity ID of the identity provider. This URL is used to configure the claims provider on the AD FS side.

clip_image059

Should the simpleSAMLphp IdP endpoints be visible to support online exchange of metadata with AD FS, then the claims provider can be configured automatically. Where metadata is password protected, or the published path of the endpoint is not reachable (for security reasons), then manual exchange of metadata via file will be necessary.

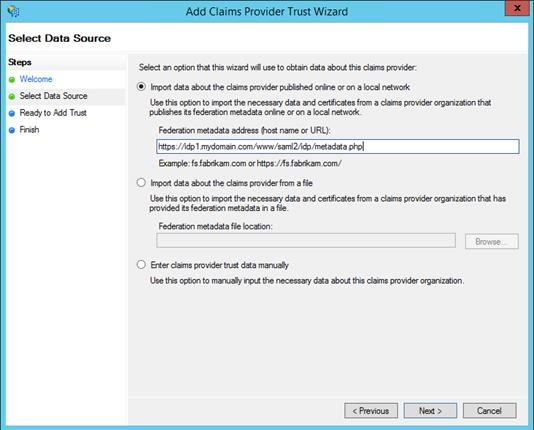

We now have sufficient information to create the claims provider on the AD FS side. In the Add Claims Provider Trust wizard, the above-mentioned URL is used.

clip_image061

As always I recommend the use of PowerShell over the UI for automating this process. While the initial learning curve/overhead is somewhat higher, it will reduce the margin for human error and also provides documented evidence and a path on how installations/configurations are performed.

Since we are hand-waving authentication to simpleSAMLphp as claims provider, any incoming attributes will need to be processed by AD FS as part of the logon process at both the claims provider and relying party.

Firstly, we’ll override the default AD FS behavior of using SAML 1.1 name identifiers (mail) in favor of the transient identifiers mentioned earlier. To do this the expected name identifier required by the identity provider (simpleSAMLphp) can be stated in PowerShell.



Set-AdfsClaimsProviderTrust -TargetName “simpleSAMLphp Identity Provider” -RequiredNameIDFormat “urn:oasis:names:tc:SAML:2.0:nameid-format:transient”



The following SAML attributes, expressed as claims rules on the claims provider handler, are defined:



1.       Transient Name identifier

c:[Type == “http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier&#8221;, Properties[“http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/format”%5D == “urn:oasis:names:tc:SAML:2.0:nameid-format:transient”]

 => issue(claim = c);

2.       uid

c:[Type == “uid”]

 => issue(claim = c);

3.       mail

c:[Type == “mail”]

 => issue(claim = c);



In a completed configuration, if we were to enable debug and analytics on the AD FS server, we can see the claims processed via Event ID 1000 in the AD FS Debug tracing logs. Note the transient name identifier claim type value of _60b434c232f5cc7048fb85d80ea4c8775d38489f90 being passed when logging on using a test (student) user.



ClaimType http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier Value _60b434c232f5cc7048fb85d80ea4c8775d38489f90 ValueType http://www.w3.org/2001/XMLSchema#string Issuer https://idp1.mydomain.com/www/saml2/idp/metadata.php OriginalIssuer https://idp1.mydomain.com/www/saml2/idp/metadata.php Property[http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/format] urn:oasis:names:tc:SAML:2.0:nameid-format:transient Property[http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/spnamequalifier] http://sts3a.mydomain.com/adfs/services/trust ClaimType uid Value student ValueType http://www.w3.org/2001/XMLSchema#string Issuer https://idp1.mydomain.com/www/saml2/idp/metadata.php OriginalIssuer https://idp1.mydomain.com/www/saml2/idp/metadata.php Property[http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/attributename] urn:oasis:names:tc:SAML:2.0:attrname-format:basic ClaimType mail Value student@nomail.com ValueType http://www.w3.org/2001/XMLSchema#string Issuer https://idp1.mydomain.com/www/saml2/idp/metadata.php OriginalIssuer https://idp1.mydomain.com/www/saml2/idp/metadata.php Property[http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/attributename] urn:oasis:names:tc:SAML:2.0:attrname-format:basic ClaimType eduPersonAffiliation Value member ValueType http://www.w3.org/2001/XMLSchema#string Issuer https://idp1.mydomain.com/www/saml2/idp/metadata.php OriginalIssuer https://idp1.mydomain.com/www/saml2/idp/metadata.php Property[http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/attributename] urn:oasis:names:tc:SAML:2.0:attrname-format:basic Value student Property[http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/attributename] urn:oasis:names:tc:SAML:2.0:attrname-format:basic



Wonderful J



Meanwhile, we need to ensure on the relying party/test web application, our simpleSAMLphp relying party from Scenario 1, that the appropriate rules are applied to ensure that claims originating from the issuer (simpleSAMLphp Identity Provider) are evaluated.

The two test users defined in config.php of the identity provider will emit two SAML attributes of interest for AD FS to process (uid and mail):

‘student:studentpass’ => array(

             ‘uid’ => array(‘student’),

             ‘mail’ => array(‘student@nomail.com’),

             ‘eduPersonAffiliation’ => array(‘member’, ‘student’),

      ),

      ’employee:employeepass’ => array(

             ‘uid’ => array(’employee’),

             ‘mail’ => array(’employee@nomail.com’),

              ‘eduPersonAffiliation’ => array(‘member’, ’employee’),

To reiterate, we wish to pass identity-specific information originating from a SAML 2.0 identity provider (simpleSAMLphp), via AD FS as a SAML 2.0 Service Provider (RP-STS), to our test SAML 2.0 Service Provider/Relying Party (simpleSAMLphp).

For the relying party, the fact that I’m using simpleSAMLphp (from Scenario 1) is merely for expediency. The application/relying party concerned may well be another application, i.e. a Cloud/SaaS or on-premise offering. However, the attributes mentioned above need to be passed by the identity provider through AD FS to the relying party application. For those not experienced with using claims providers with AD FS, this can sometimes be a little confusing.

In Scenario 1, we created a simpleSAMLphp relying party that surfaced claims from the local Active Directory as the claims provider (identity provider) using the Send LDAP Attributes as Claims claim ruleset.  This particular ruleset is not applicable to claims emitted for our simpleSAMLphp claims provider. Let’s look at the custom claims rule again:

c:[Type == “http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname&#8221;, Issuer == “AD AUTHORITY”]

 => issue(store = “Active Directory”, types = (“mail”, “uid”), query = “;mail,sAMAccountName;{0}”, param = c.Value);



Note the reference to AD AUTHORITY. This is specifically targeting the local home Active Directory as the issuer for the claim.  When authentication is handled through the simpleSAMLphp identity provider, this rule is ignored.

Our test application (the same one used in Scenario 1) is expecting attributes uid and mail to be passed from AD FS.  We could add a single rule that states passing all claims rules to be processed by the relying party, covering the claims from the identity provider described above.

c:[]

 => issue(claim = c);



This satisfies the requirement of passing the name identifier, uid and mail attributes from the simpleSAMLphp identity provider, but it also passes additional information from the AD FS RP-STS to the relying party.

clip_image063

Note the additional claims such as client IP, forwarded (NAT) client IP, user agent etc.

Alternatively, we could define three pass-through rules, expressly bound to the simpleSAMLphp identity provider through the issuer value.  Instead of sending all claims values, we only emit claims specific to that identity provider for the attributes concerned on the relying party rules.

1.       Name Identifier

c:[Type == “http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier&#8221;, Properties[“http://schemas.xmlsoap.org/ws/2005/05/identity/claimproperties/format”%5D == “urn:oasis:names:tc:SAML:2.0:nameid-format:transient”, Issuer == “https://idp1.mydomain.com/www/saml2/idp/metadata.php”%5D => issue(claim = c);

2.       uid

c:[Type == “uid”, Issuer == “https://idp1.mydomain.com/www/saml2/idp/metadata.php”%5D

 => issue(claim = c);

3.       mail

c:[Type == “mail”, Issuer == “https://idp1.mydomain.com/www/saml2/idp/metadata.php”%5D

=> issue(claim = c);

Here we see the difference from the simpleSAMLphp relying party/web application in terms of claims/attributes emitted in the SAML response.

clip_image065

OK.. that’s it for this post. Feel free to post questions and and I’ll get back to you as soon as possible.

As ever: test, play and test a little more Smile





MFA Conditional Access Policies in AD FS 2012 R2

AD FS R2, Claims-based Authentication, Multi-Factor Authentication, Web Application Proxy, Windows Server 2012 R2, , , ,

Hello again. The previous Multi-Factor Authentication (MFA) post on User Certificates provided an opportunity to expand and look at  some of the more interesting scenarios for MFA conditional access.  This “interest”, if I may call it that, stemmed from playing around with MFA over the last few months and looking at the role of conditional access polices therein.

Ramiro Calderon wrote a great article on MFA policy here and it comes highly recommended. As he mentions in his post, the AD FS claims engine computes MFA authentication requests (defined via the AD Management UI) in a logical OR fashion. This can be initially a little confusing and we’ll take a look at some more creative use of MFA policies, to handle more flexible access scenarios in R2.

MFA Primer

To make use of MFA, an MFA provider is required. In a vanilla AD FS R2 setup, this is limited to certificate authentication using client certificates (see previous post). For other MFA options, check with your favorite 2FA vendor to see if they’ve written an MFA adapter for AD FS R2.

In the global authentication policy, the MFA provider needs to be enabled.


Let’s have a look at what happens when MFA is enabled through the AD FS Management UI. MFA policies can be triggered either globally (applicable to all relying parties), or on the relying party itself.

In the example below, MFA is required for securing access to applications outside of the organization, what Microsoft call Extranet use.


Users connecting from outside the corporate network will be prompted after successful AD username/password authentication by the MFA handler.

When the MFA policy is set globally, this can be seen in PowerShell via the Get-AdfsAdditionalAuthenticationRule

c:[Type == "http://schemas.microsoft.com/ws/2012/01/insidecorporatenetwork", Value == "false"] => issue(Type = "http://schemas.microsoft.com/ws/2008/06/identity/claims/authenticationmethod", Value = "http://schemas.microsoft.com/claims/multipleauthn");

If a global authentication policy is not specified, but the policy is enabled in a relying party rule, then an additional authentication rule, defined on the RP, is evaluated. This allows for a more refined use of policy and I’ll show examples of this, by way of scenarios, later in the post.

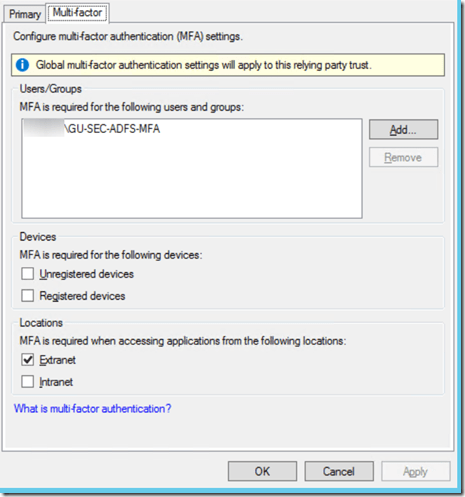

The AD FS Management UI is sufficient for applying the use of MFA in most single “context” access scenarios. By this I mean, we are able to enforce the requirement of MFA to satisfy policies, that stipulate additional authentication is required by use of one of either user/group, device or location. For example, if we determine that a MFA policy needs to be used by location only, e.g. Extranet, we simply select the Extranet location checkbox. All users connecting from outside of the corporate network must then use MFA. Conversely, if we want to enforce MFA for a specific subset of users/groups, irrespective of their location (Extranet/Intranet), by adding them via the users/groups option in the UI, this can be  also be set. Finally, we can also specify that unregistered or registered devices (a la Workplace Join) need to use MFA, via the devices checkboxes. The fact that these policies may also be applied independently on a per relying party basis, often satisfy basic access policy needs.

The challenge arises when dealing with a combination of policy, for example, when stating an MFA requirement by device and by location.

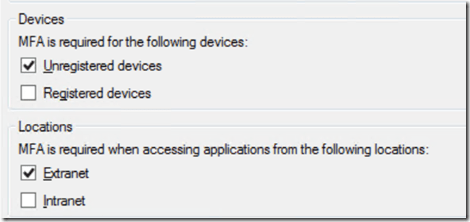

AD FS will now trigger MFA when an unregistered device (non-workplace joined) connects to AD FS AND also when users are connecting from the Internet  The policies are evaluated independently and we may unwittingly be enforcing MFA for a registered device in a Workplace Join scenario, when the desired outcome was actually to ensure that a single authentication factor (the device certificate paired with the user concerned) was sufficient for access from the outside. This is the logical OR behavior that Ramiro refers to in his post.

Similar behavior can be observed if the following settings are made.

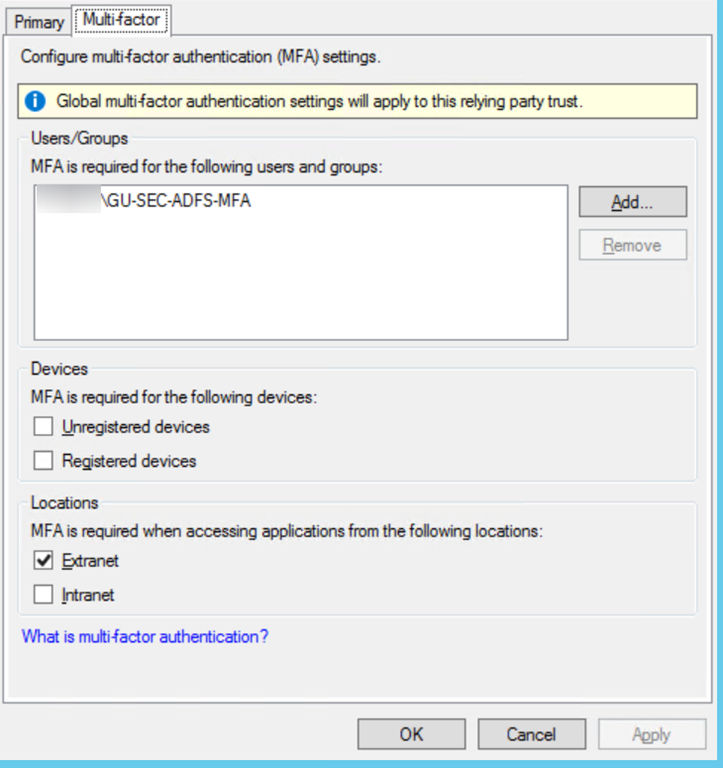

Here we have a specific user/group requiring MFA and also the location (Extranet) checkbox is checked. Users who are members of the GU-SEC-ADFS-MFA group must always use MFA, irrespective of their location AND other users, connecting from outside of the corporate network, will be challenged by the MFA handler. Again, if the intention was to enforce MFA for a combination of outcomes; namely, by group and location outside, then this is not the outcome.

Rules  are evaluated independently when set via the UI. Given that requirements via the UI operate this way, if there is a requirement to enforce MFA via policy where:

      • it’s an unregistered device AND
      • connecting from the Internet

                OR in the second example where:
              • user is member of group X AND
              • connecting from the Internet

            The AD FS Management  UI doesn’t support this arrangement. Instead, more refined policies can be handled with PowerShell, using combinations of authentication rules. As with the UI, this can be expressed either as a global authentication policy applicable to all relying parties (Set-AdfsAdditionalAuthenticationRule) or MFA policies defined on a per relying party basis (Set-AdfsRelyingPartyTrust).  I’ll use the latter to drum up examples of setting finer-grained access rules in the scenarios that follow. More work for us admins, but greater flexibility to boot…

                    Scenario A: Externally connecting workplace joined device (registered user)

              Requirement: Registered users on Workplace Join devices connecting from outside the corporate Internet may authenticate using the device authentication certificate. All other users/devices must use MFA.

            $rp = Get-AdfsRelyingPartyTrust –Name "WIF Test Application"
            Set-AdfsRelyingPartyTrust –TargetRelyingParty $rp –AdditionalAuthenticationRules ‘c: [Type == "            http://schemas.microsoft.com/ws/2012/01/insidecorporatenetwork", Value == "false"] && [Type == "http://schemas.microsoft.com/2012/01/devicecontext/claims/isregistereduser", Value == "false"] => issue(Type = "http://schemas.microsoft.com/ws/2008/06/identity/claims/authenticationmethod", Value = "http://schemas.microsoft.com/claims/multipleauthn");’

              Requirement: Users who are members of Group X are exempt from a general policy stipulating use of MFA when connecting from the outside of  the network. All other users must use MFA. Note: We flip the behavior with the Group SID claim use in Scenario B by using the NOT EXISTS evaluation.

              $rp = Get-AdfsRelyingPartyTrust –Name "WIF Test Application"
              Set-AdfsRelyingPartyTrust –TargetRelyingParty $rp –AdditionalAuthenticationRules ‘exists([Type == "              http://schemas.microsoft.com/ws/2012/01/insidecorporatenetwork", Value == "false"]) && NOT EXISTS ([Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/groupsid", Value == "S-1-5-21-Insert your Group SID here"]) => issue(Type = "http://schemas.microsoft.com/ws/2008/06/identity/claims/authenticationmethod", Value = "http://schemas.microsoft.com/claims/multipleauthn");’

              Scenario D: MFA using a custom evaluation rule

              Requirement: The Azure Sprout organization is using “vanity” UPNs to enforce MFA for non-standard UPN suffixes. Corporate users with an @azuresprout.com UPN suffix may use single factor (forms) authentication from the outside. All other UPN suffixes in the “organization” must use MFA.

              $rp = Get-AdfsRelyingPartyTrust –Name "WIF Test Application"
              Set-AdfsRelyingPartyTrust –TargetRelyingParty $rp –AdditionalAuthenticationRules ‘NOT EXISTS([Type == "              http://schemas.xmlsoap.org/ws/2005/05/identity/claims/upn", Value =~ "^.*@azuresprout\.net$"]) => issue(Type = "http://schemas.microsoft.com/ws/2008/06/identity/claims/authenticationmethod", Value = "http://schemas.microsoft.com/claims/multipleauthn&quot;);’

              Scenario E: MFA based on custom claims extrapolated from an attribute store

              Requirement: An SQL attribute store is used to augment claims when accessing a business application. Values extracted  from the store are to be used as triggers for MFA.

              On the relying party, we connect to an attribute store and populate an sqlrole claim, based on running a stored procedure to find the user and the appropriate access information for user on application FOO.

              c:[Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname"%5D => add(store = "SQL Attribute Store", types = ("http://schemas.microsoft.com/ws/2008/06/identity/claims/sqlrole"), query = "EXEC dbo.GET_ACCESSTOKEN @UserID={0},@AppCode=’FOO’", param = c.Value);

            Next, on the RP pipeline, we define the MFA requirement based on value returned in the sqlrole claim .

            $rp = Get-AdfsRelyingPartyTrust –Name "WIF Test Application"
            Set-AdfsRelyingPartyTrust –TargetRelyingParty $rp –AdditionalAuthenticationRules  ‘c:[Type == http://schemas.microsoft.com/ws/2008/06/identity/claims/sqlrole”, Value =~ "<Whatever the response we’re expecting for MFA trigger>"]) => issue(Type = "http://schemas.microsoft.com/ws/2008/06/identity/claims/authenticationmethod", Value = "http://schemas.microsoft.com/claims/multipleauthn&quot;);’

              The latter scenario is a little more unusual, but I’ve used it to highlight what is possible (as with Scenario D) outside of the normal conventions provided by the UI.

              As a sneak peek into the new Window Server “10” release, it appears that Microsoft have expanded authentication support and making the nuances of policy-based access control more accessible to the end user, through the use of a new policy template editor, made available to the AD FS administrator.. more on this and another ADFS “stuff” to come…

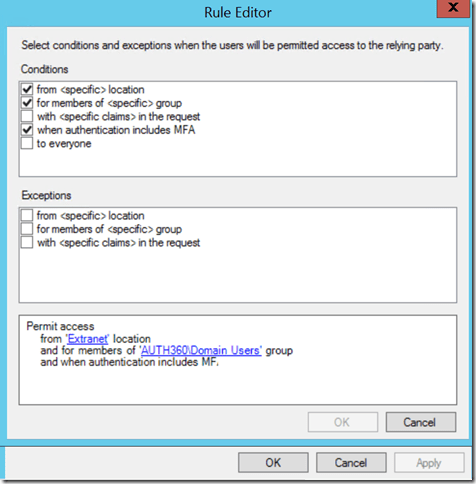

              Here’s a snippet of the new rules editor from the pre-release.


            MFA with Client Certificates in ADFS 2012 R2

            AD FS R2, Claims-based Authentication, MFA, Multi-Factor Authentication, Relying Party, Strong Authentication, Web Application Proxy, Windows Server 2012 R2, , , , , , ,

            There have been questions on this subject posted recently to comments and also on the TechNet forums, so I just wanted to quickly write up something about use of client certificates in the MFA (secondary) slot in AD FS 2012 R2.  You may recall from earlier AD FS R2 posts, that we used virtual smart card and smart card as examples. Let’s broaden that to include “soft” client certificates as an MFA/secondary provider. This functionality is provided “out-of-the box” in AD FS 2012 R2. An Active Directory Certificate Services (AD CS) infrastructure is required to serve up certificates for enabling users for PKI.

            In this post, I’ll be using an Active Directory Certificate Services (AD CS) role from Windows Server 2012 R2 as the Certification Authority (CA). I won’t be explaining the CA setup, beyond the templates used, as there’s been plenty of ink expended on this topic already on the Internet.  A Windows 2003/2008/2012 CA setup will suffice for the activities  concerned here.

            Testing was done with client certificates from a Windows 8.1 clients using:

            • a non domain-joined machine, via Certificate Enrollment (Policy) Web Services and Microsoft Management Console (MMC)
            • a domain-joined machines, via an auto-enrollment policy User-Context GPO.

            In AD Certificate Services (AD CS) a duplicate of the default User certificate template was made (called User V2). Under the Application Policy, the policy is limited to Client Authentication.


            For domain-joined clients, we can enable auto-enrollment via the security tab of the template. Here we see a group called GU-SEC-ADCS-Managed, which is given the necessary read, enroll and autoenroll permissions and we can add users to that security group.


            To enable auto-enrollment for domain-joined clients we need to activate a policy to accomplish this. Against best practices (boo), but for expediency (mine.. yay!), I enable the policy in the Default Domain Policy GPO. The actual settings can be find under Windows Settings|Security Settings|Public Key Policies. Select the Certificate Services Client – Auto Enrollment object and enable the Configuration model section as seen below.


            For the non-domain joined client, read and enroll permissions are given to a group I’ve called GU-SEC-ADCS-Workgroup. The test user, who will be a member of that group, can request the UserV2 certificate template via the Certificates|User MMC plug-in using AD CS Certificate Enrollment Web Services. Again, I won’t be describing how to setup enrollment web services. If you need help, just post in the comments section.

            With Certificate Services, we need to make available the template available to both sets of clients, by enabling the template in the Certification Authority MMC plugin – Certificate Templates|New|Certificate Template to Issue.


            In a correctly configured setup, domain-joined clients will obtain a certificate on the next GPO refresh cycle for the user (e.g. logon).

            As mentioned previously, I’m joining non-domain joined clients via enrollment web services using the MMC snap-in in Windows 8.  In the Certificates|User context of the MMC snap-in, we request a new certificate. In this particular test setup, there are three certificate templates visible for enrollment by the client from the CA:


            User V2 is the template we just created for use for “soft” client certificates.The certificate services enrollment point in this example is configured for Username/Password authentication. Logon is done with a test AD user account training@azuresprout.net, who is a member of the GU-SEC-ADCS-Workgroup and authorized with the enroll permission.


            Once that’s done, a client certificate is installed in the user context.


            On the AD FS side of things, let’s assume we now need to apply MFA for users (with client certificates) coming from the Internet. Before we jump into the actual AD FS settings, it’s worth mentioning that any firewalls in front of the Web Application Proxy (WAP) will need to allow port 49443/TCP inbound, as this is the port the AD FS Smartcard Authentication Service listens on.

            We see evidence of this requirement in the Windows Firewall snap-in. AD FS creates a firewall rule during the installation allowing 49443/TCP inbound.



            In AD FS Global Authentication Policy for MFA, we enable certificate authentication:


            Note that at this point, I’m not enforcing the use of MFA globally, rather enabling it for use at a lower level on a relying party rule, for more incremental control. Whether to go for global or granular policies really boils down to a question of fit and the use cases may need to support. .

            On a test Windows Identity Foundation (WIF) relying party, MFA is enforced for externally connecting users.


            Logging on to the relying party, we hit the primary authentication handler (AD FS forms), enter our username/password.


            Connecting from the Internet, with MFA enabled, the secondary (MFA) authentication handler kicks in and we’re presented with a login popup.


            In the above graphic, we have an option to login with a virtual smart card (top) and an X509 client certificate (bottom). Click on the certificate and AD FS will authenticate the user using secondary authentication (MFA).

            The enrolled certificate is stored by AD CS in the userCertificate attribute of the user object within AD. This attribute contains the DER-encoded X509v3 certificates issued to the user. We can lookup the necessary certificate reference, for example, in the Attribute Editor of AD Users & Computers (ADUC).


            This is a multi-valued attribute.


            One thing that can be useful, should you be working with multiple certificates for a given user, is being able to cut and paste the hex encoded value into Notepad, save it, then check to see what the certificate value corresponds to using CERTUTIL.

            certutil –decodehex mylo.hex mylo.cer

            We can then open the .cer file to see what the certificate is.

            Returning to the test claims applications (having logged in successfully0, we pass all claims processed via an issuance transform rule of c:[]  => issue(claim = c);
            We can see the relevant authentication method references processed during primary and secondary logon.


            As I mentioned in an earlier post, the nice thing here is that you can use the Enhanced Key Usage (EKU) claim emitted for both client certificates and smart cards / virtual smartcards to moderate access to resources as you see fit.

            Looking at a user authenticating with a client certificate, the following EKU is emitted as a claim.


            Smart cards also emit the smart card EKU


            Access can also be further graded by using custom OIDs to differentiate between levels of access based on the type of MFA being used and the EKU value.

            Use of certificates in the MFA slot in R2 (I suspect) are really geared for use in a true two-factor (2FA) authentication capability, i.e. smart cards. While the use of a client certificate does offer value in offering richer access possibilities, this is not 2FA, in that it does not satisfy the mantra of “something I have and something I know”. Instead, this is more akin to 1.5FA.

            To finish up, Microsoft recently added support in Windows 7 for domain-joined clients via a hotfix. I’ll attempt to throw out a quick post on this, but in the meantime,  I’ll be following up by looking at conditional access policies for MFA.

            As always, thanks for reading and if you have any questions, please post a comment and I’ll do my best to answer quickly.

            Exchange 2013 SP1, Outlook Web App (OWA) and AD FS

            AD FS R2, Claims-based Authentication, Exchange Control Panel, Exchange Server 2013, Outlook Web App, Web Application Proxy, , , , ,

            It’s over a year now since the last Outlook Web App article about integrating OWA with ADFS. In that post we explored the use of claims-based authentication with OWA in a Proof of Concept using WIF 3.5 and FedUtil. This was an unsupported setup in Microsoft eyes and, in the meantime, with the release of Windows Server 2012 R2, opportunities for supporting Exchange web applications such as OWA,  have arisen. The first, provided support via the use of a non-claims aware web application in AD FS R2 using Kerberos Constrained Delegation (KCD), utilizing the new Web Application Proxy (WAP) feature. The recent release of Exchange 2013 SP1 further expands OWA support, including native support for AD FS in the Exchange product, with claims-based authentication now possible for Outlook Web App (OWA) and the Exchange Admin Center (EAC).

            To get started, I’ll refer you to a Technet article here that provides a step-by-step. I used this article as a starting point for setting up OWA/EAC with AD FS R2. These two application endpoints in Exchange (OWA and ECP) need to be represented as relying parties within AD FS.

            Here’s an excerpt of the PowerShell rules required for creating the RPs:

            Add-ADFSRelyingPartyTrust -Name “Outlook Web App” -Enabled $true -Notes “This is a trust for https://mail.mydomain.com/owa” -WSFedEndpoint https://mail.mydomain.com/owa -Identifier https://mail.mydomain.com/owa -IssuanceTransformRules $IssuanceTransformRules -IssuanceAuthorizationRules $IssuanceAuthorizationRules

            Add-ADFSRelyingPartyTrust -Name “Exchange Admin Center (EAC)” -Enabled $true -Notes “This is a trust for https://mail.mydomain.com/ecp” -WSFedEndpoint https://mail.mydomain.com/ecp -Identifier https://mail.mydomain.com/ecp -IssuanceTransformRules $IssuanceTransformRules -IssuanceAuthorizationRules $IssuanceAuthorizationRules

            The AD User and Group SIDs, together with UPN also need to be defined for each of the Exchange Relying Party applications in the form of custom claims rules: Windows Account Name (sAMAccountName)

            c:[Type == “http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname”, Issuer == “AD AUTHORITY”] => issue(store = “Active Directory”, types = (“http://schemas.microsoft.com/ws/2008/06/identity/claims/primarysid”), query = “;objectSID;{0}”, param = c.Value);

            Group SID (enumarate group membership)

            c:[Type == “http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname”, Issuer == “AD AUTHORITY”] => issue(store = “Active Directory”, types = (“http://schemas.microsoft.com/ws/2008/06/identity/claims/groupsid”), query = “;tokenGroups(SID);{0}”, param = c.Value);

            User Principal Name (UPN)

            c:[Type == “http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname”, Issuer == “AD AUTHORITY”] => issue(store = “Active Directory”, types = (“http://schemas.xmlsoap.org/ws/2005/05/identity/claims/upn”), query = “;userPrincipalName;{0}”, param = c.Value);

            On the Exchange side, via PowerShell, we specify the Relying Party Identifiers via the AdfsAudienceUris parameter and must also provide the token signing certificate thumbprint from the AD FS server.

            $uris = @(“https://mail.mydomain.com/owa”,”https://mail.mydomain.com/ecp”) Set-OrganizationConfig -AdfsIssuer “https://adfs.contoso.com/adfs/ls/” -AdfsAudienceUris $uris -AdfsSignCertificateThumbprint “TOKEN SIGNING CERTIFICATE THUMBPRINT”

            Don’t forget to import the token signing certificate into the Trusted Root Certificate Authorities container of your Exchange servers, otherwise you may fall foul of the following error logging on to your mailbox.

            clip_image002

            The source in pinpointing the problem here, lies in the query string of the error message https://external.mydomain.com/owa/auth/errorfe.aspx?msg=WrongAudienceUriOrBadSigningCert.

            In this (my) case, the token signing certificate had not been added to the Exchange servers as a trusted cert. Equally, the wrong Audience URI can present a configuration problem. It commonly arises when a unnecessary trailing slash is added to the Relying Party Identifier when configuring in AD FS, e.g. https://mail.mydomain.com/owa/. s something to keep an eye on. The correct RP identifier would be https://mail.mydomain.com/owa.

            I’ve not yet tested setting up Exchange 2013 SP1 under AD FS 2.0, but there’s nothing untoward going on here to suggest that using it as your identity provider is not possible. If you’re running under AD FS Windows Server 2012 R2 then the Web Application Proxy (WAP) adopts the proxy role for external access scenarios and also supports host name translation. For example, I make use of https://external.mydomain.com as an external URL and map this to the internal name of https://mail.mydomain.com. Be aware that matching of path-based names is not supported in the current release of the WAP, so mixing path names between externally and internally published resources is a no-no.

            To illustrate this, let’s look at an example of an OK configuration:

            Add-WebApplicationProxyApplication -BackendServerUrl ‘https://mail.mydomain.com/owa/’ -ExternalCertificateThumbprint ‘DD94E2ABAA123C6B6009CB42F16CE892AF96A47C’ -ExternalUrl ‘https://external.mydomain.com/owa/’ -Name ‘OWA’ -ExternalPreAuthentication ADFS -ADFSRelyingPartyName ‘Outlook Web App’

            Whereas, this is a non-workable configuration.

            Add-WebApplicationProxyApplication -BackendServerUrl ‘https://mail.mydomain.com/owa/’ -ExternalCertificateThumbprint ‘DD94E2ABAA123C6B6009CB42F16CE892AF96A47C’ -ExternalUrl ‘https://external.mydomain.com/mail/’ -Name ‘OWA’ -ExternalPreAuthentication ADFS -ADFSRelyingPartyName ‘Outlook Web App’

            Note the use  in publishing of the same literal path  https://external.mydomain.com/owa/ in the first example, versus a rewritten one in the second https://external.mydomain.com/mail/.

            If you’re contemplating the use of AD FS 2.0, then clearly host-name translation is not something that the AD FS 2.0 proxy brings to the table. Alternatively, a suitably equipped front-end load balancer may also fulfill that role.

            On the subject of load balancers, this rather conveniently brings me back to new features in AD FS R2. Server Name Indication (SNI) was mentioned in the “First Looks” articles about AD FS R2 and it’s worth checking that your current load balancer/reverse proxy in front of AD FS supports SNI and is supported/enabled on the device concerned. This is becoming a pain point for many, as evidenced by various posts on the Technet forums. The move to kernel-mode (HTTP.SYS) in R2 mandates the use of SNI. Therefore, it’s worthwhile checking that:

            • your friendly neighbourhood load balancer/device in front of AD FS supports SNI
            • clients and user agents support SNI and you’re not inadvertently locking them out
            • (08/04) SSL termination endpoints (e.g. load balancer / 3rd-party reverse proxies) in front of AD FS  may be affected by the recent heartbleed bug (http://heartbleed.com), exposing vulnerable OpenSSL libraries and certificates used on those devices. Microsoft infrastructure, employing Secure Channel (SChannel)  not affected, may inadvertently become so through SSL termination endpoints on the aforementioned devices in front of AD FS. More information can also be found here (http://www.kb.cert.org/vuls/id/720951)

            Accessing the OWA URL, via https://external.mydomain.com/owa and the OWA Relying Party redirects the user to AD FS for logon. In a default AD FS R2 configuration, this equates to forms-based authentication for external users.

            clip_image003

            Users accessing OWA internally, access https://mail.mydomain.com via the farm using Integrated Windows Authentication (IWA). As usual when connecting to the farm, the URL for the federation service needs to be added to the Local Intranet Zone within IE and any corresponding configuration changes made to support Kerberos for other browsers.

            At this point, optional use of a clams provider (connecting to the local AD) or an MFA provider in R2 could also come into play to provide stronger authentication, should it be required. Having successfully authenticated via AD FS, we gain access to the user mailbox. image

            The Exchange Control Panel (ECP) was also configured as a relying party within AD FS and within the Exchange configuration. Accessing the Exchange Admin Center remotely, with the Exchange Organization Administrator mylo, we can see the gamut of administrative console options available under federated logon.


            This is one of those scenarios where it might be a good idea to apply stronger authentication (MFA)  to privileged user accounts when accessing the Exchange Admin Center. We can do this by applying policy-based access on the AD FS R2 server.

            In the next post, I’ll be taking a look at strong authentication access scenarios using ActiveSync and Lync (primarily with mobile clients), before completing Part 3 of the First Looks series of AD FS R2.
